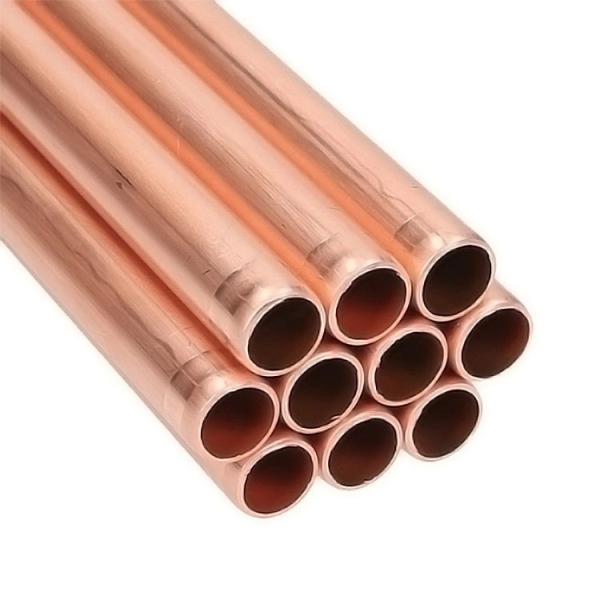

40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 99.9%

Product Categories

Wuxi Jianbang Haoda Steel Co., Ltd

Contact Now

40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 99.9%

Name: 40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 999
Brand: JBHD
Price: 1 USD

Quality 40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 99.9% wholesale

Brand Name : JBHD

Model Number : C10100

Certification : CE、ISO、SGS

Place of Origin : China

MOQ : 1 ton

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Ton

Delivery Time : 7-15 working days

Packaging Details : Standard seaworthy package

Product Name : Copper Pipe

Test : QA-QC-Mtc

Base Material : C10100

Diameter : 2mm~800mm

Hardness : 1/16 hard,1/8 hard,1/4 hard,1/2hard,full hard

Surface Treatment : Mill, Polish, Bright, Hair Line

Price Term : EXW FOB CIF CFR

Tolerance : +/-0.1mm

Contact Now

C10100 C10200 99.9% Pure Copper Tube / C11000 Copper Pipe Price

Descriptipn

Copper has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed.

1.	Item	Copper Pipe
2.	Standard	ASTM,DIN,EN,ISO,JIS,GB
3.	Material	T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800, C10910,C10920,TP1,TP2,C10930,C11000,C11300,C11400,C11500, C11600,C12000,C12200,C12300,TU1,TU2,C12500,C14200,C14420, C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000, C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc.
4.	Shape	Round, square, rectangular, etc.
5.	Specifications	Round	Wall thickness: 0.2mm~120mm
			Outside Diameter: 2mm~910mm
		Square	Wall thickness: 0.2mm~120mm
			Size: 2mm2mm~1016mm1016mm
		Rectangular	Wall thickness: 0.2mm~910mm
			Size: 2mm4mm~1016mm1219mm
6.	Length	3m,5.8m, 6m, 11.8m, 12m, or as required.
7.	Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
8.	Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
9.	Price Term	Ex-work, FOB, CFR, CIF, etc.
10.	Payment Term	T/T, L/C, Western Union, etc.
11.	Delivery Time	According to order's quantity.
12.	Package	Export standard package: bundled wooden box, suit for all kinds of transport, or be required.
13.	Export to	Singapore,Indonesia,Ukraine,Korea,Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq,Russia,Malaysia, etc.
14.	Application	Copper pipe is the first choice of residential housing water pipes, heating, cooling pipes installed. Copper products are widely used in aviation, aerospace, ships,industry, metallurgy, electronics, electrical, mechanical, transportation, construction and other fields of the national economy.
15.	Contact	If you have any question, please feel free to contact me.

copper Alloy	Chemical Composition		Temper	Mechanical Property
copper Alloy	Copper %	Phosphorus %	Temper	Tensile Strength MPa	Elongation %	Hardness HV
Cu-DHP	≥ 99.90	0.015-0.040	R220	≥ 220	≥ 40	40-70
Cu-DHP	≥ 99.90	0.015-0.040	R250	≥ 250	≥ 30	75-100
Cu-DHP	≥ 99.90	0.015-0.040	R290	≥ 290	≥ 3	≥ 100

Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube

Copper Alloy	Temper	Cleanness	Standard
Cu-DHP	R220	≤ 38mg/m²	EN 12735-1
Cu-DHP	R2250	≤ 38mg/m²	EN 12735-1
Cu-DHP	R290	≤ 38mg/m²	EN 12735-1

40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 99.9%

Feature

1)Light weight, good thermal conductivity, high strength at low temperature.

It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly of cryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid (such as lubrication system, oil pressure system, etc.) and as a gauge tube.

2)Copper pipe has strong, corrosion-resistant characteristics.

So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice.

3)Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.

So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.

Company Introduction

40mm 42mm 54mm Copper Metal Pipe C10100 C10200 C11000 99.9%

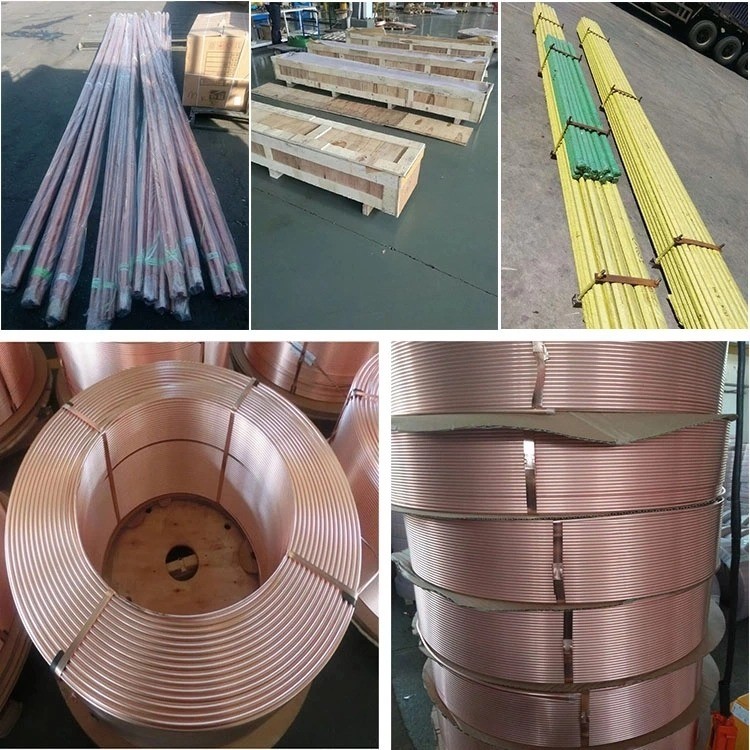

Shipping and Packing

FAQ

Q1: What's your terms of payment?

A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.

Q2: What's the terms of delivery?

A: EXW, FOB, CFR, CIF

Q3: What's your delivery time?

A: For stocks, we could transport the goods to loading port within 15 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.

Q4: Could you produce according to the samples?

A: Yes, we can customer-made by your samples or technique drawings.

Q5: Could youprovide the compliment samples?

A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
