1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14

Product Categories
Wuxi Jianbang Haoda Steel Co., Ltd
Contact Now

1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14

Brand Name : JBHD

Model Number : 1100 2024 3003 5052 5751 6061 6063 7075

Certification : ISO9001

Place of Origin : China

MOQ : 1 ton

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Ton

Delivery Time : 7-15 working days

Packaging Details : Standard seaworthy package

Material : 1100 2024 3003 5052 5751 6061 6063 7075

Edge : Mill Edge Slit Edge

Technique : EXTRUDED

Temper : H14

Surface : Mill Finish Polished

Price term : EXW FOB CIF CFR

Contact Now

1100 2024 3003 5052 5751 6061 6063 7075 Aluminium Alloy Rod Aluminum Round Bar

What is 1100 aluminum used for?

Aluminum 1100 can be shaped into many different products, including chemical equipment, railroad tank cars, fin stock, dials, name plates, cooking utensils, rivets, reflectors and sheet metal. The plumbing and lighting industries also use aluminum 1100, as do a wide variety of other industries.

What is the difference between Al 1100 and 6061?

Aluminium alloy 1100 consists almost entirely of pure aluminum with very small amounts of other metals added to improve corrosion resistance and machinability—usually copper or iron. aluminum alloy 6061 contains trace amounts of magnesium and silicon as well as chromium and zinc for improved corrosion resistance.
Can you weld 1100 aluminum?
Alloy 1100 is highly resistant to chemical attack and weathering. It is a relatively soft alloy that is very formable and is used extensively in thin gauge and foil products. It has good welding characteristics and it is also used as a filler alloy for welding purposes.
What is the difference between 1100 and 3003 aluminum?
The alloy gets a 20% boost in strength beyond 1100 grade aluminum, otherwise known as pure aluminum, thanks to the addition of Manganese and Copper. While the increase in strength is beneficial, aluminum 3003 is generally considered moderate strength compared to other aluminum tempers and metals.
Products Name aluminum bars
Material Aluminum
Other Material 1060, 1050, 1070, 1100, 3003, 3004, 5052,
5652, 5154, 5254, 5454, 5083, 5086, 5056,
5456, 2024, 2014, 6061, 6063 ,etc
Standard ASTM, SUS, DIN etc
Surface Bright, polished, hair line, brush, embossed, etc
Payment Term L/C , D/A , D/P , T/T , West Union , Money Gram , other
Price Term FOB, CIF, CFR , CNF etc
Package Export standard package:bundled wooden box or be required;
The inner size of container is below:
(1)20 foot GP:5.8m(length)x2.13m(width)x2.18m(high)about24-26 CBM
(2)40 foot GP:11.8m(length)x2.13m(width)x2.72m(high)about68 CBM
Delievery Time 5-15days
Loading Port china
Supply Ability 3000 tons per yaer

1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14

Alloy Si Fe Cu Mn Mg Cr Zn Ti OTHERS OTHERS Al
1050 0.25 0.4 0.05 0.05 0.05 — 0.05 0.03 0.03 — 99.5
1070 0.2 0.25 0.04 0.03 0.03 — 0.04 0.03 0.03 — 99.7
1100 0.95 Si + Fe 0.05-0.20 0.05 — — 0.1 — 0.05 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 — — 0.1 — 0.05 0.15 Rem.
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 — 0.25 — 0.05 0.15 Rem.
3005 0.6 0.7 0.3 1.0-1.5 0.20-0.6 0.1 0.25 0.1 0.05 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 — 0.05 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 — 0.05 0.15 Rem.
5252 0.08 0.1 0.1 0.1 2.2-2.8 — 0.05 — 0.03 0.1 Rem.
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.05 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.05 0.15 Rem.

1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14

Alloy Temper Tensile Strength Yield Strength Elongation (%) Tensile Strength Yield Strength
(ksi) (ksi) 0.01-0.05 in 0.051-0.125 in (MPa) (MPa)
1100 H12 16 15 4 12 110.3 103.4
H14 18 17 3 10 124.1 117.2
3003 H12 19 18 9 11 131 124.1
H14 22 21 3 7 151.7 144.8
3004 H32 31 25 6 15 213.7 172.4
H34 35 29 5 10 241.3 199.9
3005 H12 26 24 5 13 179.3 165.5
H14 29 28 4 9 199.9 193.1
5005 H12 20 19 5 9 137.9 131
H14 23 22 4 7 158.6 151.7
5052 H32 33 28 7 10 227.5 193.1
H34 38 31 6 8 262 213.7
5056 O 42 22 23 24 289.6 151.7
H38 60 50 6 13 413.7 344.7
6061 T4 35 21 22 24 241.3 144.8
T6 45 40 12 17 310.3 275.8
7075 O 33 15 16 18 227.5 103.4
T6 83 73 11 12 572.3 503.

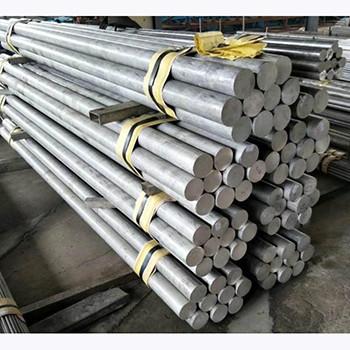

Product Show

1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14

1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H141100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
Company Introduction
1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
Certification
1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
1100 2024 Aluminium Alloy Rod Round Bar 5052 5751 6061 6063 7075 H14
