5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

Product Categories
Wuxi Jianbang Haoda Steel Co., Ltd
Contact Now

5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

Brand Name : JBHD

Model Number : 5005 5052 6061 7075

Certification : ISO9001

Place of Origin : China

MOQ : 1 ton

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Ton

Delivery Time : 7-15 working days

Packaging Details : Standard seaworthy package

Material : 5005 5052 6061 7075

Edge : Mill Edge Slit Edge

Technique : EXTRUDED

Temper : H14

Surface : Mill Finish Polished

Price term : EXW FOB CIF CFR

Contact Now

5005 5052 6061 7075 T6 Aluminum Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

What is the difference between 5052 and 5005 aluminium?

Many people substitute 5052 for 5005. While 5052 can produce acceptable results, it has more imperfections and is more prone to color variation than 5005 alloy aluminum. Talk to your anodizer about your applications, and your expectations for the finish.

Is 5005 aluminium a marine grade?

Aluminium Alloy 5005 is a marine grade aluminium suitable for anodizing and architectural facades. AA 5005 is a medium strength alloy with very good resistance to atmospheric corrosion and very good weldability that is highly suitable for decorative anodizing.
What is 5000 series aluminum alloy?
5000 series are alloyed with magnesium, and offer superb corrosion resistance, making them suitable for marine applications. 5083 alloy has the highest strength of non-heat-treated alloys. Most 5000 series alloys include manganese as well.
What is the most common 5000 series aluminum?
Magnesium is the main element used in the composition of the 5000 series grades of aluminium. The 3 most popular commercial grades in this category are 5083, 5754 & 5251. The 5000 series grades of aluminium are non heat-treatable alloys.
Products Name aluminum bars
Material Aluminum
Other Material 1060, 1050, 1070, 1100, 3003, 3004, 5052,
5652, 5154, 5254, 5454, 5083, 5086, 5056,
5456, 2024, 2014, 6061, 6063 ,etc
Standard ASTM, SUS, DIN etc
Surface Bright, polished, hair line, brush, embossed, etc
Payment Term L/C , D/A , D/P , T/T , West Union , Money Gram , other
Price Term FOB, CIF, CFR , CNF etc
Package Export standard package:bundled wooden box or be required;
The inner size of container is below:
(1)20 foot GP:5.8m(length)x2.13m(width)x2.18m(high)about24-26 CBM
(2)40 foot GP:11.8m(length)x2.13m(width)x2.72m(high)about68 CBM
Delievery Time 5-15days
Loading Port china
Supply Ability 3000 tons per yaer

5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

Alloy Si Fe Cu Mn Mg Cr Zn Ti OTHERS OTHERS Al
1050 0.25 0.4 0.05 0.05 0.05 — 0.05 0.03 0.03 — 99.5
1070 0.2 0.25 0.04 0.03 0.03 — 0.04 0.03 0.03 — 99.7
1100 0.95 Si + Fe 0.05-0.20 0.05 — — 0.1 — 0.05 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 — — 0.1 — 0.05 0.15 Rem.
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 — 0.25 — 0.05 0.15 Rem.
3005 0.6 0.7 0.3 1.0-1.5 0.20-0.6 0.1 0.25 0.1 0.05 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 — 0.05 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 — 0.05 0.15 Rem.
5252 0.08 0.1 0.1 0.1 2.2-2.8 — 0.05 — 0.03 0.1 Rem.
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.05 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.05 0.15 Rem.

5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

Alloy Temper Tensile Strength Yield Strength Elongation (%) Tensile Strength Yield Strength
(ksi) (ksi) 0.01-0.05 in 0.051-0.125 in (MPa) (MPa)
1100 H12 16 15 4 12 110.3 103.4
H14 18 17 3 10 124.1 117.2
3003 H12 19 18 9 11 131 124.1
H14 22 21 3 7 151.7 144.8
3004 H32 31 25 6 15 213.7 172.4
H34 35 29 5 10 241.3 199.9
3005 H12 26 24 5 13 179.3 165.5
H14 29 28 4 9 199.9 193.1
5005 H12 20 19 5 9 137.9 131
H14 23 22 4 7 158.6 151.7
5052 H32 33 28 7 10 227.5 193.1
H34 38 31 6 8 262 213.7
5056 O 42 22 23 24 289.6 151.7
H38 60 50 6 13 413.7 344.7
6061 T4 35 21 22 24 241.3 144.8
T6 45 40 12 17 310.3 275.8
7075 O 33 15 16 18 227.5 103.4
T6 83 73 11 12 572.3 503.

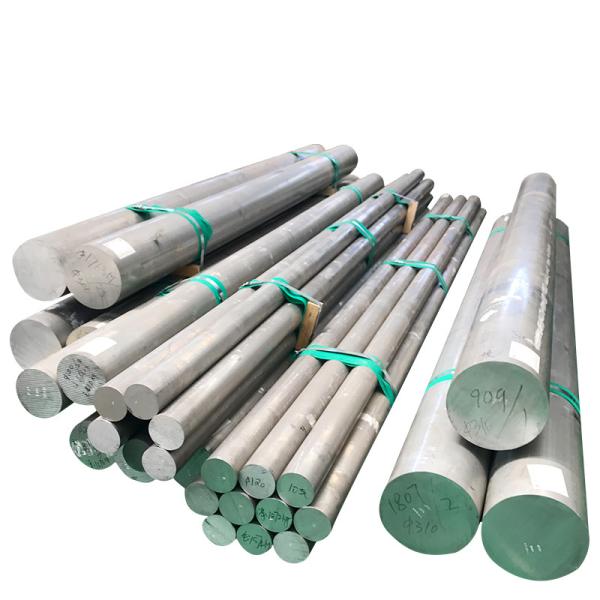

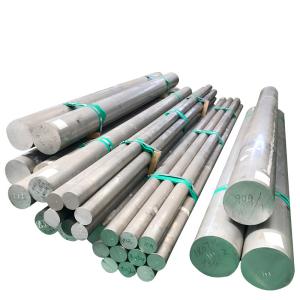

Product Show

5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm

5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
Company Introduction
5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
Certification
5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
5005 5052 T6 Aluminum Solid Rod Bar 5mm 9.5mm 10mm 12mm 15mm 20mm
