T651 T6 Aluminum Sheet Metal 14 Gauge AlZn5.5MgCu

Name: T651 T6 Aluminum Sheet Metal 14 Gauge AlZn55MgCu
Brand: JBHD
Price: 1 USD

Quality T651 T6 Aluminum Sheet Metal 14 Gauge AlZn5.5MgCu wholesale

Brand Name : JBHD

Model Number : 7075 Aluminum Sheet

Certification : ISO,SGS

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 10000 Tons per Month

Delivery Time : 7-15 work days

Packaging Details : Standard seaworthy export packing or as customer demands

Material : AlZn5.5MgCu

Shape : Plate，sheet，panel

Standard : GB/T 3880-2006,GB/T 3880-2012

Temper : T651 T652

Stock : in stock

Application : Take Off A La Mode Mould Processing

Contact Now

T651 T6 Aluminum Sheet Metal 14 Gauge Aluminum Sheet Metal AlZn5.5MgCu

AlZnMgCu1.5/3.4365 7075(A-Z5GU) 7075(C775) 7075/A97075 t651 t6 t7651 alloy aluminum sheet

Quickly details.

1. Alloy : 7075(C775).

2. Tempe r: T6,T651.

3. Max length : 7500mm.

4. Density : 2.85g/cm3.

5. Thickness : 150mm.

6. American standard: 7075/A97075 AA/UNS.

Application:

7075 alloy aluminum sheet for Take off a la mode,

7075 alloy aluminum sheet for A prototype,

7075 alloy aluminum sheet for Mechanical equipment,

7075 alloy aluminum sheet for Mould processing,

Features:

1. Especially used in the manufacture of aircraft structures and other required high strength.

2. 7075 aluminum alloy structure tightly, strong corrosion resistant effect.

3. Availability of product with oxidation film at the class one.

7075 Chemical Composition Standard.

Cu	Mg	Mn	Fe	Si	Zn	Ti	Cr	Other	Al
1.2-2.0	2.1-2.9	0.3	0.5	0.4	5.1-6.1	0.2	0.18-0.28	<0.15	Balance

Aluminum Alloy 7075 Properties.

Temper	Tensile strength (kg/mm2)	yield point, elongation(kg/mm2)	Elongation(%)	brinell hardness	shear strength(kg/mm2)	fatigue strength(kg/mm2)
T6	56.2	49.2	14	150	32.2	16.2
T652	56.2	49.2	14	150	32.2	16.2
T73	51.3	44.3	13	140	30.9	15.5
T7352	51.3	44.3	13	140	30.9	15.5

(Typical Mechanical Properties)

ALLOYAND TEMPER

Ultimate Tensile

Strength,MPa

Yield Tensile

Strength,MPa

Hardness,HB

Elongation,%

7075-T651

572

503

160

Typical Physical Properties

ALLOY AND

TEMPER

Average Coefficient Of

Thermal Expansion,(20-100℃)um/m.k

Melting Range,℃

Electrical Conductivity

Electrical

Resistivity

7075-T651

23.6

475-635

0.0515

T651 T6 Aluminum Sheet Metal 14 Gauge AlZn5.5MgCu

Company Introduction

T651 T6 Aluminum Sheet Metal 14 Gauge AlZn5.5MgCu

Product Tags:

T651 T6 Aluminum Sheet Metal

14Gauge Metal Aluminum Sheet

AlZn5.5MgCu Metal Aluminum Sheet

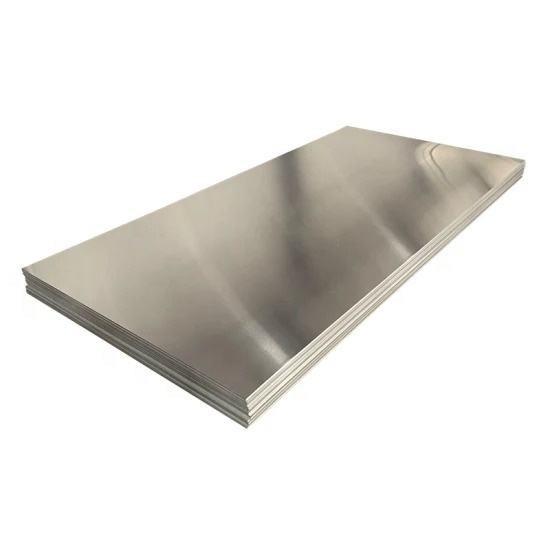

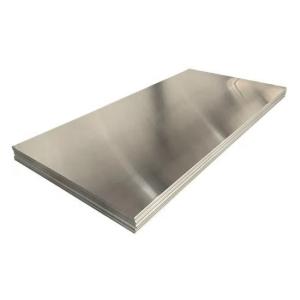

T651 T6 Aluminum Sheet Metal 14 Gauge AlZn5.5MgCu Images
